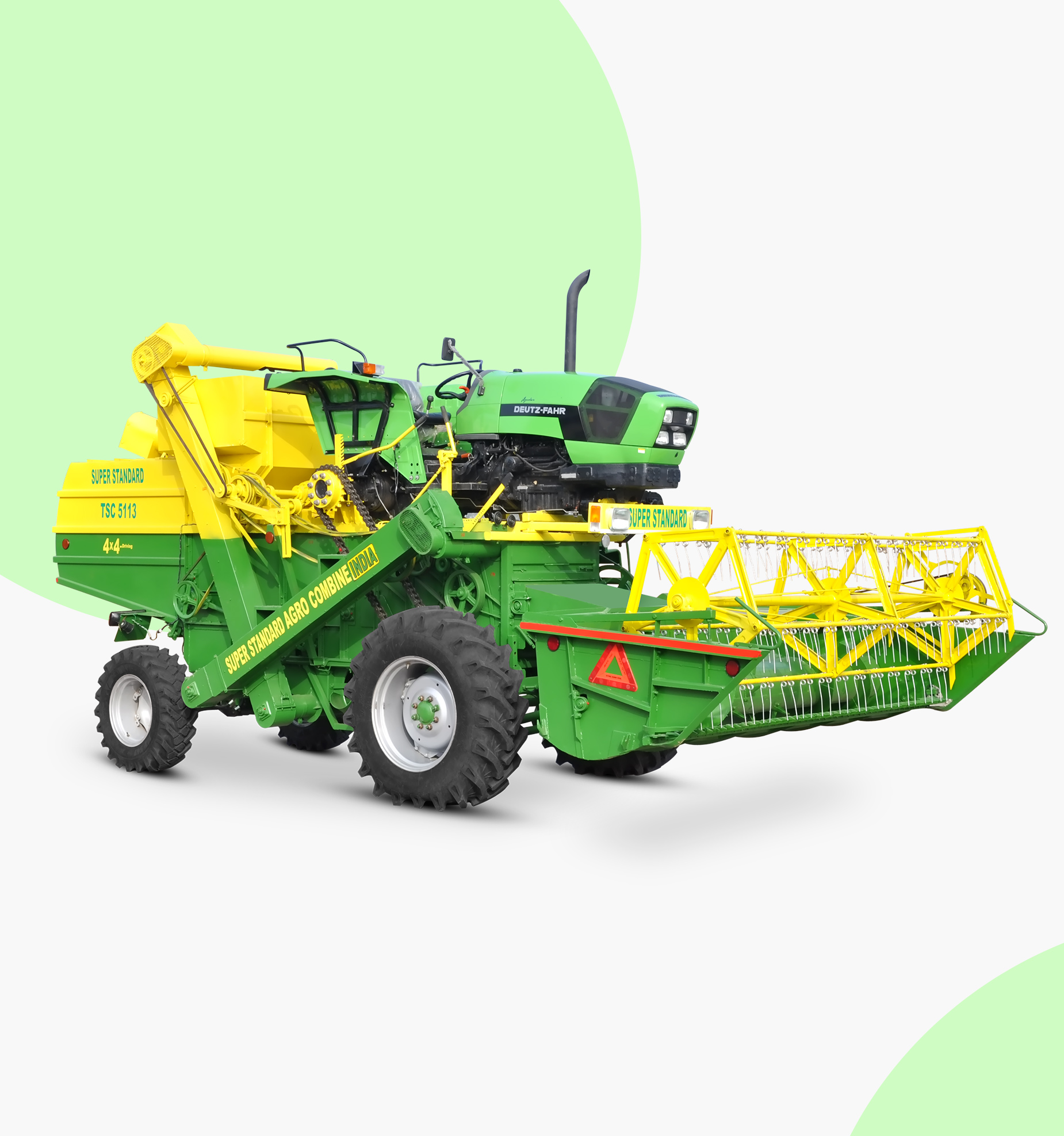

TSC 5113

Multi Crop Tractor Driven Combine Harvester

Super Standard Multi Crop Tractor Driven Combine Harvesters (also known as TSC Harvesters) are superior harvesting machines that are enabled to perform in tough geographical conditions. Super Standard combine harvesters are known for their remarkable combination of strength, style, performance and efficiency, regardless of terrain or crop conditions. Super Standard combine harvesters are the culmination of high quality raw material, latest technological manufacturing process and in depth agricultural knowledge of our engineers and great leadership that builds on the strong attributes of our previous models but adds more optimum harvesting performance, technology, comfort and convenience to take our current and future customers to a level not offered on any other combine company.

Shipping Available all Over the World
  • • Power Steering, Easy to Maintenance, High Ground Clearance, High Capacity Hydraulic System
  • • Suitable for Wheat, Paddy, Soyabean, Pulses, Sunflower, Mustard & Grams
Chassis 41* (1041 mm)
Straw Walker 5 Nos.
Cutter Mechanism
Cutter Bar Width 3657 mm (12 Feet)
Cutting Height 55-1000 mm
Overall Dimensions
Length 11100 mm
Width 2640
Height 4115 mm (Withour Canopy)
Minimum Ground 380 mm
Clearance Weight 6035 KG. (Working Condition) With Tractor
Tractor Require Minimum 55-75 H.P. Only 4 Wheel Drive
Tyres
Front 16.9 - 30 12 PR
Rear 11.2 X 24 08 PR
Trailer 6.50 X 20 12 PR
Cutting Capacity
Paddy 1 Acre Per Hour
Wheat 2 Acre Per Hour<
Ground Speed
First Gear Km / Hr. 1.2 to 3.5
2nd Gear Km / Hr. 3.2 to 3.5
3rd Gear Km / Hr. 7.2 to 20.5
Reverse Gear Km / Hr. 3.5 to 3.5
Dimensions Working Transport
Length 8680 mm 12330 mm
Width 4665 mm 3090 mm
Height 3880 mm 3880 mm
Weight 8500 Kg
Super Standard Barnala
